4 Way Adjustable Swivel Screen Mounting Kit For Model Y Juniper / Model 3 Highland - Upgrade Version

4-Way Adjustable Swivel Screen Mount for Tesla Model 3 / Model Y

Upgrade the factory center display with a four-way adjustable aluminum-alloy mount that lets you angle the screen left, right, up or down. Model-specific versions are available for both earlier and refreshed Tesla interiors, with dedicated LHD and RHD configurations.

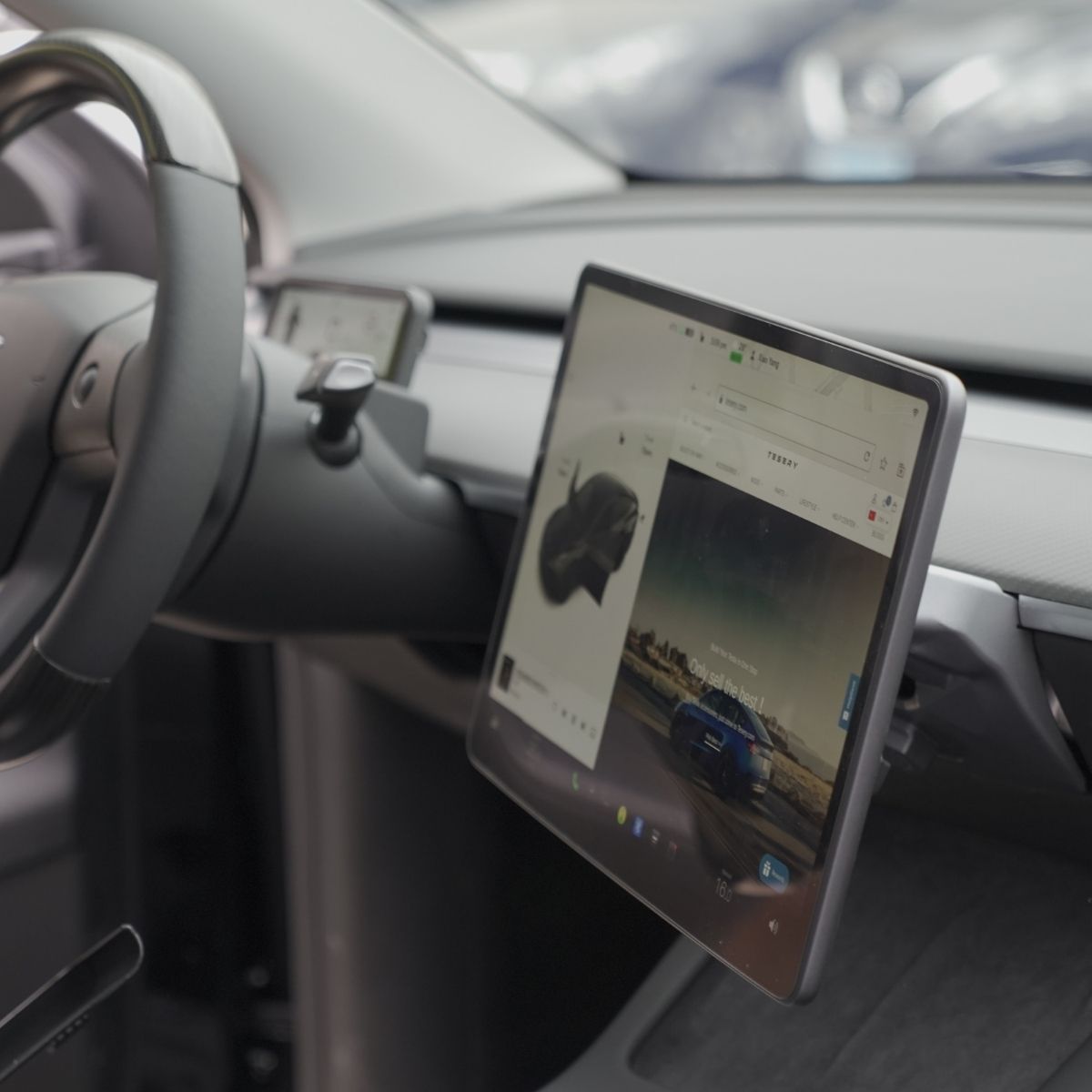

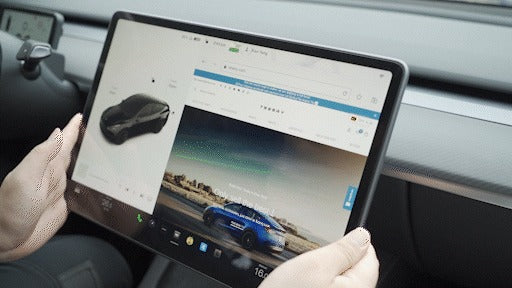

Adjust the Center Display to Your Preferred Viewing Angle

Angle Toward the Driver
Rotate the display toward the driver for a more direct viewing angle.

Angle Toward the Passenger
The screen can also be moved toward the passenger when needed.

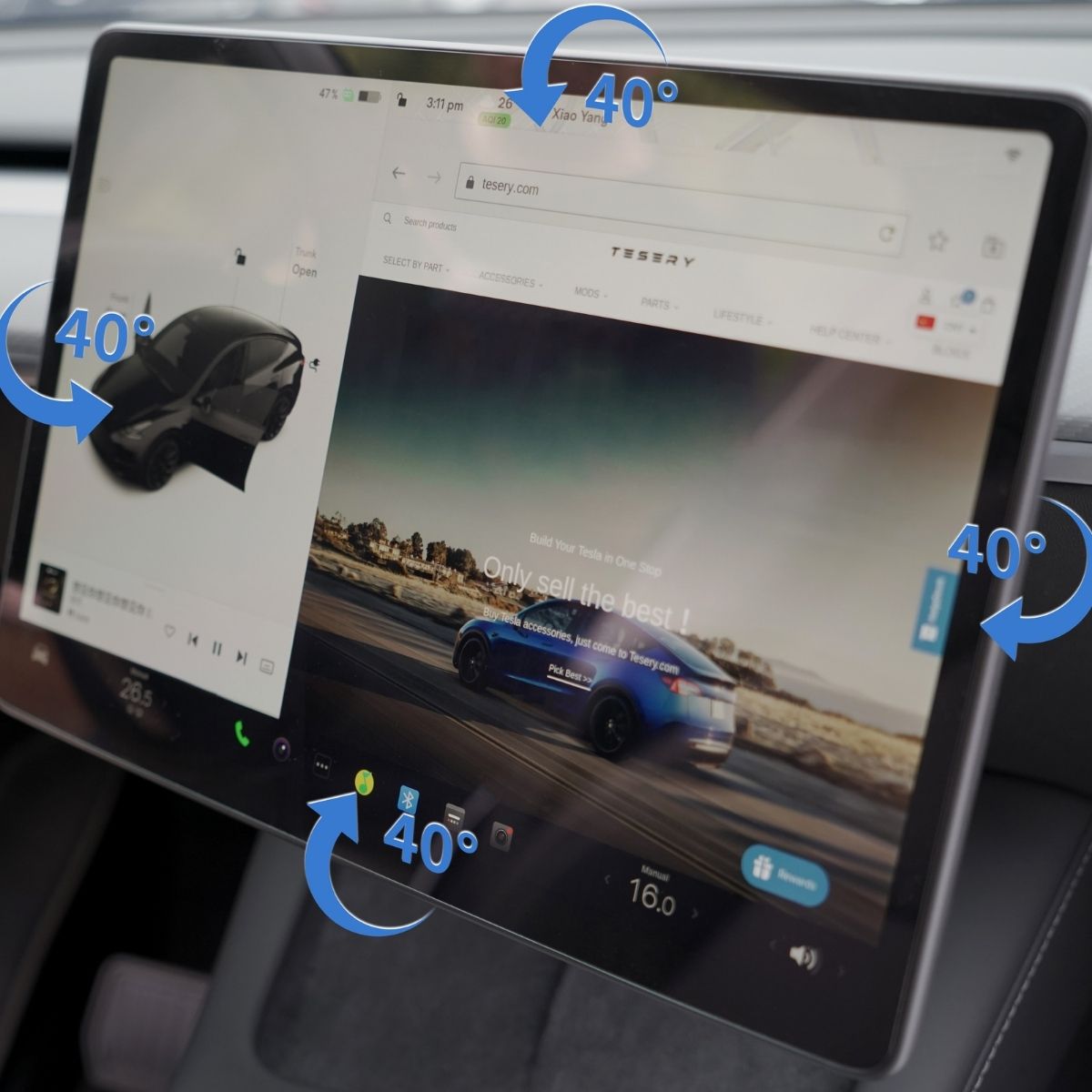

Vertical Adjustment
Tilt the screen upward or downward to better match seating position and help manage reflections or glare.

Mechanical Adjustment
The system uses a physical swivel mechanism and does not add motors, software or powered screen movement.

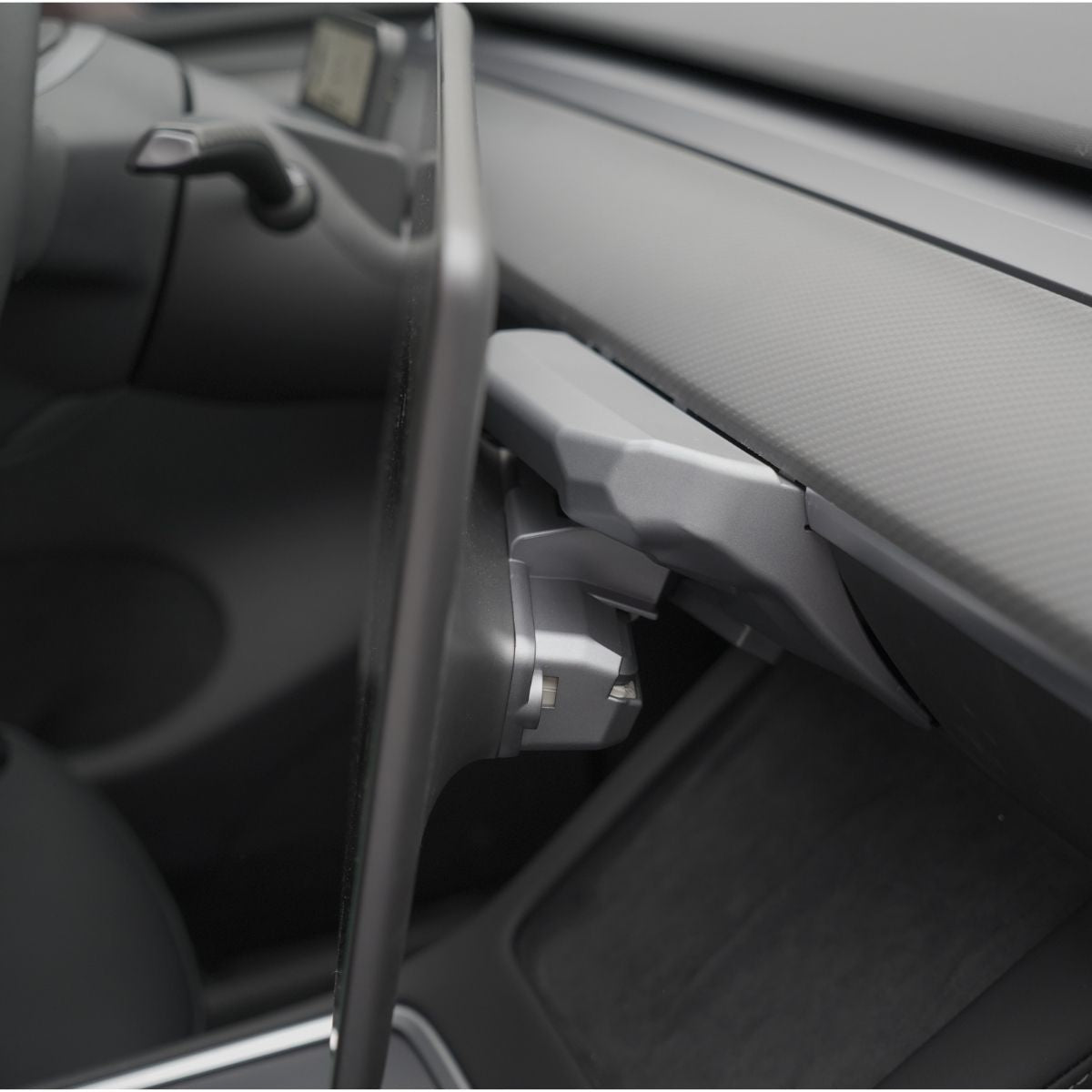

Upgrade Version Maintains the Factory-Like Screen Height

The supplier specifically states that this upgraded mounting design does not raise the center screen height and is intended to avoid additional visual obstruction compared with elevated swivel-mount designs.

Screen Position Still Changes When Swiveled

Although the mount is designed not to add permanent screen height, the screen's edge position changes when tilted or rotated. Always confirm that the selected angle does not block the driver's forward view or interfere with surrounding trim.

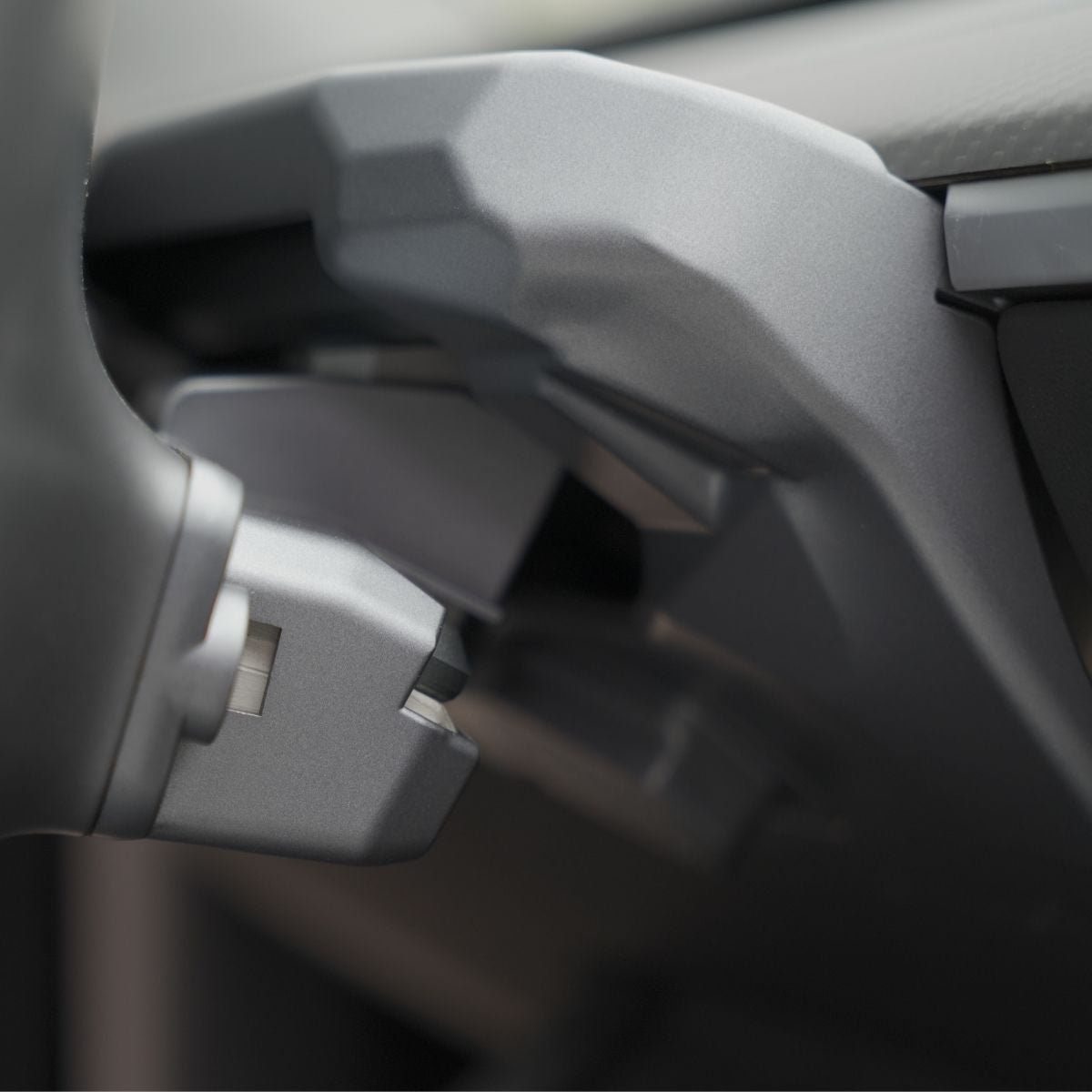

Damped Swivel Mechanism

The supplier describes the mount as using calibrated damping to hold the screen in the selected position while still allowing manual adjustment.

The design is intended to reduce unwanted movement and vibration during normal driving while keeping the screen adjustable by hand.

Vibration Performance Is Supplier-Rated

The supplier describes the mount as stable and resistant to rattling on uneven roads. No independent vibration-cycle or durability-test values are published on the current page.

Vehicle Compatibility

⚠️ Choose the Correct Vehicle Generation

The refreshed Model 3 Highland / Model Y Juniper / Model YL version uses different surrounding trim and sensor integration from earlier Model 3 / Model Y interiors. Do not choose a version based only on the “Model 3” or “Model Y” name.

Driver-Side Options

⚠️ LHD and RHD Versions Are Not Interchangeable

Select the version that matches your vehicle's steering-wheel side. The surrounding trim and installation orientation differ between Left-Hand-Drive and Right-Hand-Drive vehicles.

⚠️ Set the Screen Angle Before Driving

Adjusting the display while the vehicle is moving can distract the driver. Set the desired position while safely parked whenever possible and make sure the screen does not interfere with steering, controls or forward visibility.

⚠️ Check Cable Freedom Through the Full Adjustment Range

After installation, slowly move the display through its full supported range and confirm that the factory wiring is not stretched, pinched, twisted or trapped by the swivel mechanism.

Aluminum Alloy Mount

The supplier specifies premium aluminum-alloy construction for the primary support structure.

The exact alloy grade, wall thickness, surface-treatment specification and tested load rating are not published.

Factory-Style Interior Integration

The supplied cover plate is designed to coordinate with the surrounding Tesla interior and conceal the upgraded mounting structure for a more integrated appearance.

Aftermarket Upgrade — Not an Original Tesla Part

This is an aftermarket swivel-mount system. Use “factory-style” or “OEM-style appearance” only as a visual description and do not present the product as a genuine Tesla factory component.

Installation Overview

1. Power Off the Vehicle
Follow the vehicle's proper shutdown procedure before disconnecting the center display or nearby electrical connectors.

2. Remove the Sensor Trim
Carefully remove the relevant temperature-sensor trim and disconnect the sensor cable.

3. Remove the Center Screen
Remove the screen fasteners, support the display securely and disconnect the required factory wiring.

4. Remove the Original Fixed Bracket
Detach the factory screen mounting bracket according to the supplied instructions.

5. Install the Swivel Mount
Secure the new mount using the intended factory mounting points and original fasteners where specified.

6. Route & Reconnect the Wiring
Pass the factory cables through the new bracket and reconnect the display harnesses without pinching or stretching them.

7. Reinstall the Display
Secure the screen to the new mounting system using the supplied fasteners.

8. Transfer & Reinstall the Sensor
Move the original sensor to the supplied trim plate, reconnect it and complete final assembly.

Supplier-Estimated Installation Time: About 30 Minutes

Tesery states that most users can complete installation in approximately 30 minutes using the included tools. Actual time varies with experience and vehicle configuration.

Professional Installation Recommended if You Are Uncomfortable Removing the Screen

Installation requires removal of the center display, electrical connectors and original mounting hardware. If you are not comfortable working around vehicle electronics and interior trim, professional installation is recommended.

Vehicle Warranty Note

The supplier describes the installation as non-destructive and states that it does not void the vehicle warranty. Warranty coverage, however, is determined by the vehicle manufacturer and applicable law, so no blanket warranty guarantee should be made by the seller.

Package Includes

Sensor Configuration Can Vary by Vehicle Version

Follow the exact instructions supplied with your selected vehicle-generation and drive-side version. Do not assume that every Model 3 / Model Y uses the identical sensor and trim arrangement.

Specifications

⚠️ Unpublished Specifications

The current exact product page does not publish the aluminum-alloy grade, mount weight, tested screen-load rating, damping-force specification, vibration-cycle rating or exact product dimensions. Do not add these specifications unless separately confirmed for this exact product.
