4 PIN Turn Brake Lamp & Inner Tail Light Replacement for Model 3/Y (21-24)

Model 3 2021-2023.10 / Turn Brake Lamp / Left

$132.59 USD

4 PIN Turn Brake Lamp & Inner Tail Light Replacement for Model 3/Y (21-24)

Name: Replacement Tail Light for Model 3/Y 2021-2023.10/2020-2025.3
Brand: Teskay
SKU: TSLLJ0104-left
Price: 132.59 USD
Availability: InStock

$132.59 USD

Condition

Brand-New Light Assembly
OEM Module From Original Vehicle

Warranty

All Lights Include
1-Year Warranty

Model Model 3 2021-2023.10 Model Y 2020-2025.3

Type Turn Brake Lamp Inner Tail Light Inner Tail Light & Turn Brake Lamp

Position Left Right Pair

4-PIN Turn Brake Lamp & Inner Tail Light for Tesla Model 3 & Model Y

Restore damaged or malfunctioning rear lighting with vehicle-specific 4-pin replacement assemblies for the body-mounted turn/brake lamp and trunk-mounted inner tail light. Choose the exact lamp type, side and connector configuration required by your Tesla.

4-PIN only · Left / Right / Pair · OE-number verification required

4 pin turn brake lamp and inner tail light replacement for Tesla Model 3 and Model Y

🔌

Dedicated 4-PIN Connection

Designed specifically for compatible Tesla rear-light assemblies using a four-pin electrical connector. A 3-pin vehicle requires the separate 3-pin version.

🧩

OE-Specific Replacement

Current part-number references are supplied for each left and right lamp assembly so fitment can be verified against the original component before ordering.

💡

LED Rear Lighting

Integrated LED illumination restores the visual continuity of the rear lamp assembly while maintaining the intended rear signaling and vehicle-presence lighting functions.

Replace Only the Rear Lamp Section You Need

🚘

Turn Brake Lamp

The outer rear lamp mounts to the body / rear quarter area and contains the corresponding turn and brake lighting functions for the selected side.

📦

Inner Tail Light

The inner lamp mounts on the trunk-lid section and visually continues the rear light signature toward the center of the vehicle.

➕

Inner Tail Light & Turn Brake Lamp

Choose the combined configuration when both the outer and inner lamp assemblies on the selected vehicle side need replacement.

↔️

Left, Right or Pair

Select a single side for localized repair or a pair when both sides require replacement.

🌧️

Weather-resistant ABS housing

Current manufacturer materials identify a durable ABS lamp housing designed for normal exterior automotive exposure.

4-PIN Must Be Confirmed Before Ordering

Do not order by model year alone. Remove or inspect the original lamp connector and confirm that it has 4 pins.

If your original lamp uses a 3-pin connector, this version is not the correct replacement.

Match the OE Number to the Exact Lamp Position

Tesla Model 3 and Model Y outer turn brake lamp pair

Turn Brake Lamp — Outer Body Lamp

Left: 1502086-00-D / 1502086

Right: 1502087-00-D / 1502087

Tesla Model 3 and Model Y 4 pin inner tail light pair

Inner Tail Light — Trunk-Lid Lamp

Left: 1502088-00-B / 1502088

Right: 1502089-00-B / 1502089

Outer turn brake lamp and inner tail light aligned on Tesla rear

Do Not Use 1077402-00-B as the Main Fitment Reference for This 4-PIN Listing

Older description content on the source and TESKAY pages still contains 1077402-00-B, but the current 4-pin product selection table specifically identifies 1502086 / 1502087 / 1502088 / 1502089. Confirm the number printed on your original lamp whenever possible.

Confirm Connector & OE Number Before Installation

Model 3 TESKAY Selector: 2021–2023.10

Model Y TESKAY Selector: 2020–2025.03*

Required Connector 4-PIN

1. Identify the Failed Lamp

Determine whether you need the body-mounted Turn Brake Lamp, the trunk-mounted Inner Tail Light, or both assemblies.

2. Confirm Left or Right

Select the side as viewed from the driver's seating direction: left side or right side of the vehicle.

3. Verify the 4-PIN Connector

Inspect the electrical connector on the original lamp. It must match the four-pin specification for this product.

4. Match the OE Number

Compare the original lamp label with the current OE references listed above before removing the assembly.

5. Remove & Replace the Assembly

Access the retaining hardware from the trunk or rear-body trim area, disconnect the original harness, remove the damaged lamp and install the matching replacement.

6. Test All Rear-Light Functions

Test the relevant tail, turn, brake and other applicable rear-light functions before reinstalling all trunk trim.

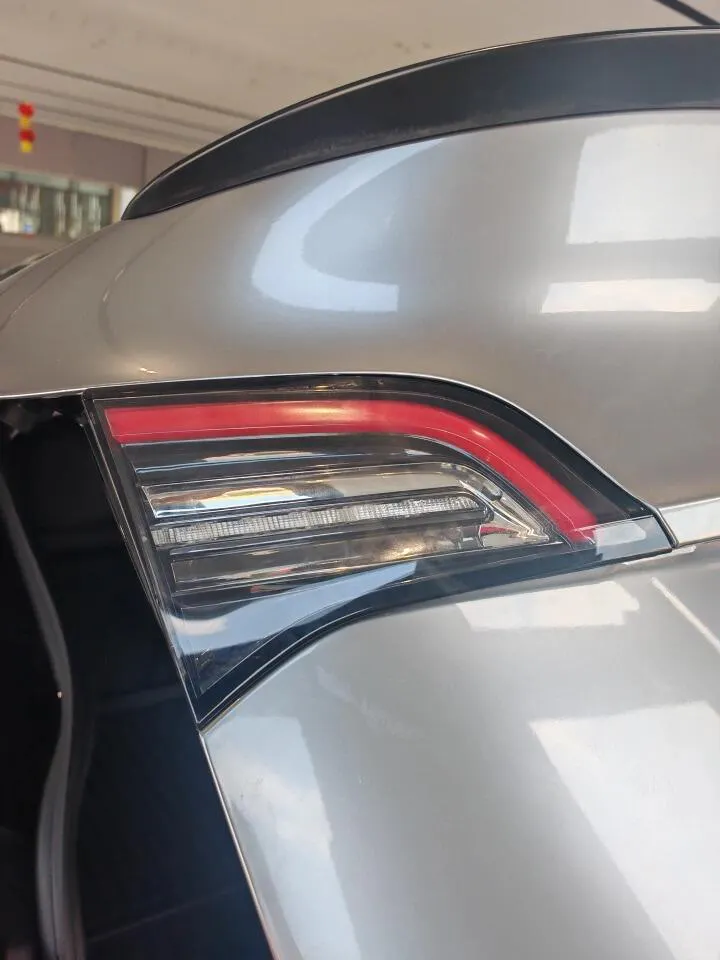

Tesla 4 pin inner tail light installed on trunk lid

Plug-and-Play Electrical Connection

Current manufacturer instructions describe direct replacement using the matching factory-style connector. Cutting or splicing the original vehicle wiring is not specified as required.

*Model Y 2025.01–2025.03 Requires Extra Verification

The current TESKAY selector extends Model Y compatibility through 2025.03, while the current Tesery 4-PIN technical header still lists Model Y 2020–2024. For early-2025 vehicles, confirm the original 4-pin connector and OE part number before ordering.

Specifications

Attribute	Details
Product	4-PIN Turn Brake Lamp & Inner Tail Light Replacement
Source Variant 47054752186600	Inner Tail Light & Turn Brake Lamp / Left
Source Manufacturing Plant Selection	Still Requires Selection / Confirmation
Plant Options on Source	Fremont / Texas Giga · Shanghai / Berlin Giga
Tesery Technical Fitment — Model 3	2021–2023
Current TESKAY Selector — Model 3	2021–2023.10
Tesery Technical Fitment — Model Y	2020–2024
Current TESKAY Selector — Model Y	2020–2025.03 — OE / Connector Verification Required
Connector	4-PIN Only
3-PIN Vehicle	Not Compatible — Separate 3-PIN Product Required
Turn Brake Lamp — Left OE	1502086-00-D / 1502086
Turn Brake Lamp — Right OE	1502087-00-D / 1502087
Inner Tail Light — Left OE	1502088-00-B / 1502088
Inner Tail Light — Right OE	1502089-00-B / 1502089
Available Types	Turn Brake Lamp / Inner Tail Light / Inner Tail Light & Turn Brake Lamp
Position Options	Left / Right / Pair
Lighting Technology	LED
Housing Material	Manufacturer-Listed ABS
Installation	Direct Replacement / Factory-Style Electrical Connection
Wire Cutting / Splicing	Not Required
Vehicle Coding	Not Specified as Required
Published IP Rating	Not Published
Published Wattage	Not Published
Published Dimensions	Not Published
Package	Selected Lamp Type and Position Only; Combined Left or Right Configuration Includes the Corresponding Outer Turn Brake Lamp + Inner Tail Light for That Side

Quick Answers

Which exact configuration is selected in the supplied link? +

Variant 47054752186600 currently resolves to Inner Tail Light & Turn Brake Lamp with Position Left. The manufacturing-plant field still requires selection.

What comes with Inner Tail Light & Turn Brake Lamp / Left? +

It represents the two corresponding left-side lamp sections: the left outer Turn Brake Lamp and the left trunk-mounted Inner Tail Light.

What does Pair mean? +

Pair means both left and right for the selected lamp type. If the combined Inner Tail Light & Turn Brake Lamp type is selected together with Pair, it corresponds to the left and right outer lamps plus the left and right inner lamps.

Does this product fit a 3-PIN Tesla tail light? +

No. This listing is specifically for 4-pin lamp connectors. A separate 3-pin version must be used for vehicles equipped with a 3-pin original connector.

Does it fit Model 3 Highland? +

No. The current product covers the pre-Highland Model 3 rear-light generation. Highland uses a different rear-light design.

Does it fit Model Y Juniper? +

No. Model Y Juniper uses a substantially redesigned rear lighting system and is not part of this 4-pin legacy Model Y listing.

Why is Model Y 2025.03 listed on TESKAY if Tesery says 2020–2024? +

The current TESKAY selector extends the legacy Model Y option through 2025.03, while the current Tesery technical header remains 2020–2024. For an early-2025 Model Y, verify the original 4-pin connector and OE lamp number before ordering.

Which OE numbers should I check? +

Turn Brake Lamp: left 1502086-00-D, right 1502087-00-D. Inner Tail Light: left 1502088-00-B, right 1502089-00-B.

Is 1077402-00-B the correct OE number for this product? +

Older source-page content still displays 1077402-00-B, but the current 4-PIN selection table specifically lists 1502086-00-D, 1502087-00-D, 1502088-00-B and 1502089-00-B. Those current numbers should be used for this listing's fitment verification.

Do I need to choose Fremont/Texas or Shanghai/Berlin? +

The Tesery source still asks customers to select the manufacturing plant. The current TESKAY selector does not expose a separate plant field, so confirming the 4-pin connector and OE number is especially important.

Is this a complete aftermarket taillight redesign? +

No. This product is intended as a replacement lamp assembly for the corresponding original rear-light positions rather than a full four-lamp custom taillight conversion kit.

Does installation require cutting or splicing wires? +

No. Current manufacturer information describes direct plug-and-play integration with the compatible original vehicle connector.

Do I need vehicle coding after replacement? +

No coding procedure is currently listed as part of the standard replacement installation. Always test all lamp functions before completing trim reassembly.

Is a specific IP rating published? +

The manufacturer describes the ABS housing as weather-resistant, but no verified IP65 or IP67 rating is published for this current listing.

Are wattage or overall dimensions published? +

No verified wattage, lumen output or overall physical dimensions are currently published, so this description does not invent those specifications.
