Pilot Light Turn Signal Upgrade for Model Y

Model Y 2020-2025.3

$253.98 USD $304.98 USD

Pilot Light Turn Signal Upgrade for Model Y

Name: Upgrade Pilot Light for Model Y 2020-2025.3
Brand: Teskay
SKU: 47738844610775
Price: 253.98 USD
Availability: InStock

$253.98 USD $304.98 USD

Condition

Brand-New Light Assembly
OEM Module From Original Vehicle

Warranty

All Lights Include
1-Year Warranty

Rear Pilot Light with Sequential Turn Signals for Tesla Model Y

Upgrade the center of your Model Y rear bumper with a vehicle-specific LED pilot-light assembly that combines running-light styling, brake-light functionality and dynamic sequential turn signals in one integrated rear lighting unit.

Rear bumper center mount · Sequential turn signal · Plug-and-play

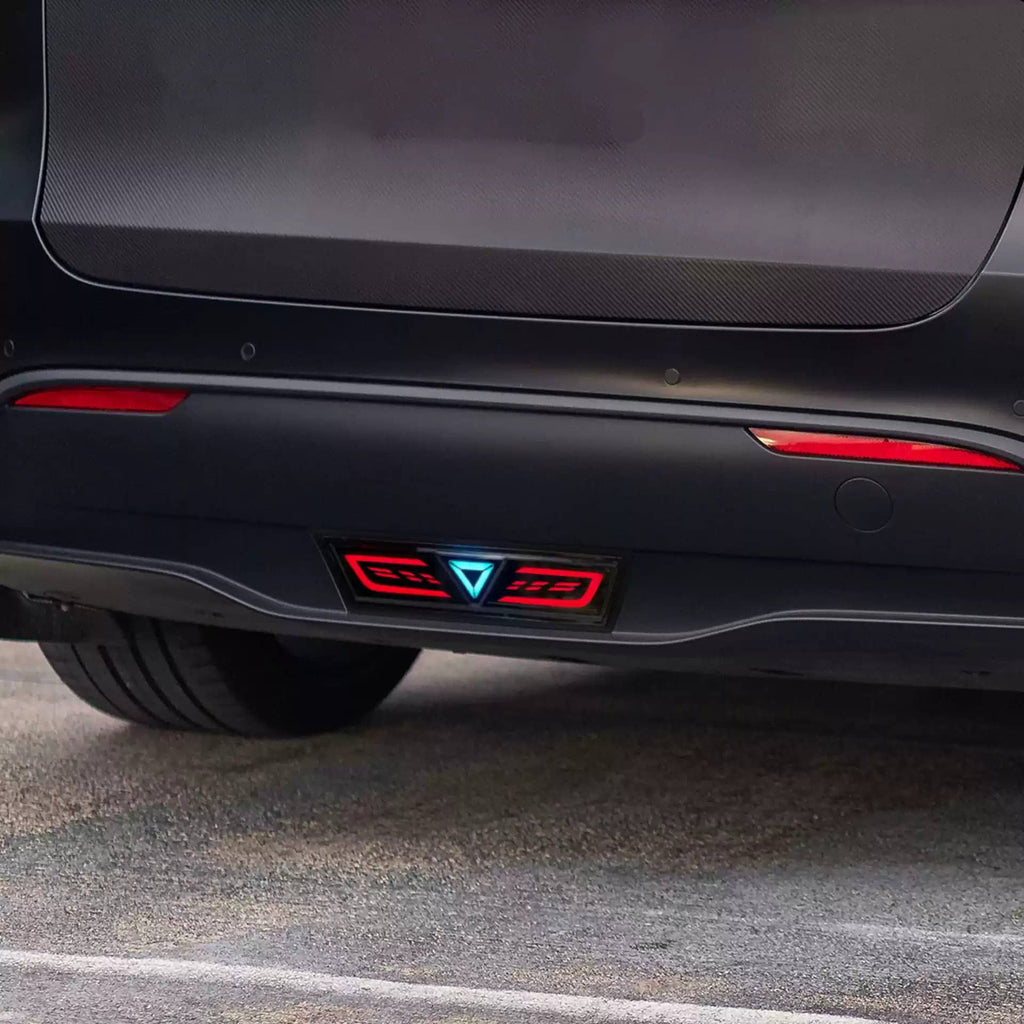

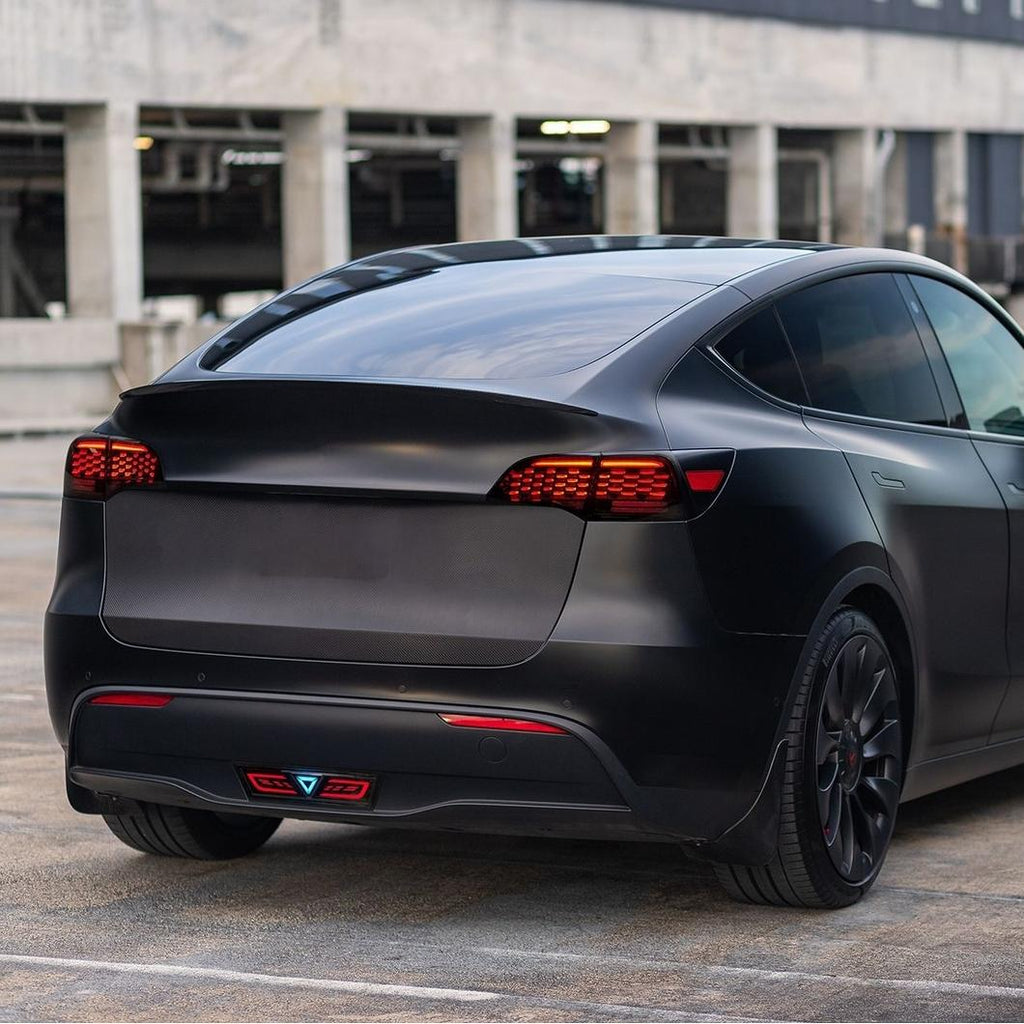

Rear pilot light with sequential turn signal installed on Tesla Model Y

↪️

Sequential Turn Signals

Dynamic amber indicator segments illuminate in sequence, creating a more noticeable turn-signal effect at the lower rear of the vehicle.

🔴

Running & Brake Light Integration

Current product imagery identifies separate LED running-light and brake-light functions in addition to the turn-signal upgrade.

🔌

Vehicle-Specific Wiring

Matching harnesses connect the light assembly to compatible factory vehicle circuits without requiring permanent cutting or splicing of the original wiring.

More Than a Decorative Pilot Light

🔻

Distinctive center-triangle styling

The angular central lamp element gives the lower rear bumper a more distinctive, performance-inspired visual signature.

🟥

LED running-light outline

Red illuminated outer sections create a continuous rear lighting signature during the supported running-light state.

🟠

Amber sequential indicators

The integrated indicator sections illuminate in an animated sequence rather than using a simple static on/off turn-signal appearance.

🛑

Additional brake-light function

Current product imagery identifies the central triangle as an LED brake-light element, adding another visible braking cue at the lower rear of the vehicle.

🧩

Integrated rear-bumper fit

The molded assembly sits in the lower center rear-bumper area for a much more integrated result than an externally attached universal LED strip.

Current Fitment Information Is Inconsistent

Current TESKAY selector:
Model Y 2020–2025.03

Current Tesery source selector:
Model Y 2020–2022

For 2023–2025.03 vehicles, confirm compatibility before fulfillment because the latest supplier page now lists a narrower model-year range.

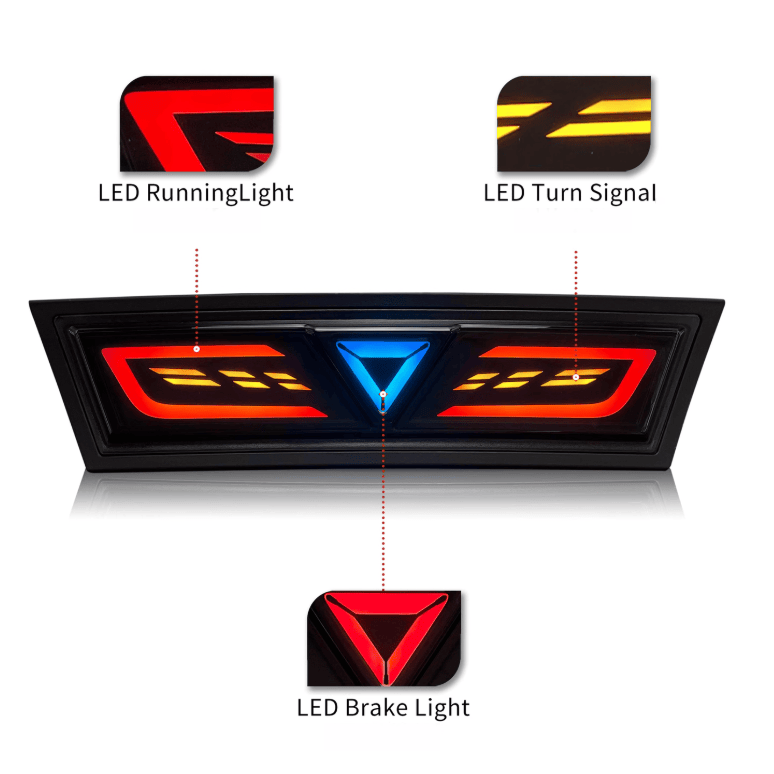

Three Integrated Rear Lighting Functions

LED Running Light

Red illuminated sections provide a distinctive continuous pilot-light appearance during the supported running-light state.

Sequential Turn Signal

Amber indicator segments illuminate dynamically when the corresponding turn signal is activated.

LED Brake Light

The current product diagram identifies the center triangle as the integrated brake-light section.

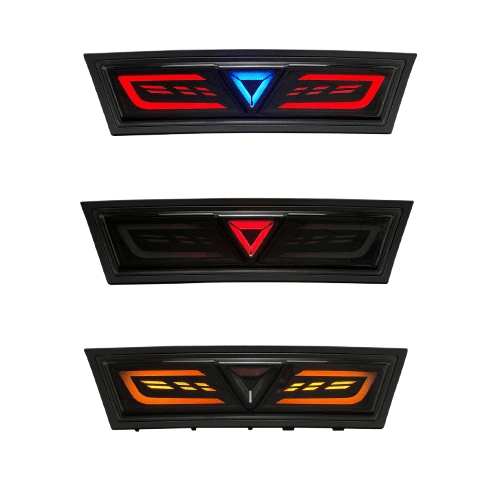

Different operating states of Tesla Model Y rear pilot light

Supplemental Rear Lighting — Not a Replacement for Factory Tail Lamps

This lower-center pilot light supplements the vehicle's original rear lighting. The factory left and right tail lamps remain the vehicle's primary rear lighting assemblies.

Rear Bumper Center Installation

TESKAY Current Fitment Model Y 2020–2025.03

Tesery Directly Confirmed Model Y 2020–2022

Model Y Juniper Not Compatible

1. Verify Model & Bumper

Confirm your vehicle uses the compatible pre-Juniper rear-bumper design before beginning installation.

2. Access the Lower Rear Bumper

Access the required lower bumper or underbody area according to the installation guide so the pilot-light assembly and wiring can be positioned safely.

3. Install the Pilot Light

Fit the light assembly into the designated lower center rear-bumper position and secure it using the supplied / corresponding mounting points.

4. Connect the Harness

Route and connect the model-specific harness to the corresponding vehicle lighting interfaces according to the supplied wiring instructions.

5. Test All Three Functions

Confirm running light, brake light and both turn-signal functions before reinstalling any removed trim.

6. Secure Wiring & Reassemble

Keep harnesses clear of exhaust-adjacent areas, sharp edges and moving components before restoring all bumper and underbody trim.

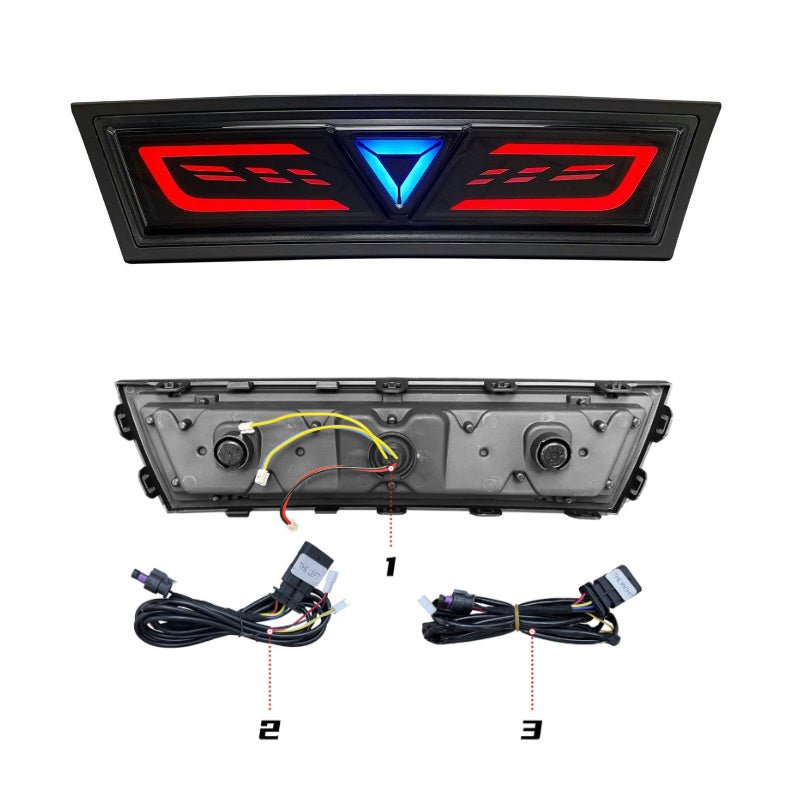

Model Y rear pilot light assembly and plug-and-play wiring harnesses

Plug-and-Play Electrical Design

Current manufacturer documentation describes the electrical installation as plug-and-play. Cutting or permanently splicing the factory wiring is not specified.

2023–2025.03 Vehicles: Verify Before Fulfillment

TESKAY currently sells this light for Model Y 2020–2025.03, while the latest Tesery product selector now lists only Model Y 2020–2022. For 2023–2025.03 vehicles, confirm the bumper and wiring compatibility before shipment.

Specifications

Attribute	Details
Product	Pilot Light Turn Signal Upgrade for Tesla Model Y
Installation Location	Lower Center Rear Bumper
Current TESKAY Vehicle Option	Model Y 2020–2025.03
Current Tesery Confirmed Fitment	Model Y 2020–2022
2023–2025.03 Model Y	Listed by Current TESKAY; Verify Before Fulfillment Due to Source Discrepancy
Model Y Juniper	Not Compatible
Light Technology	LED
Running Light	Integrated — Identified in Current Product Imagery
Turn Signal	Integrated Sequential LED Indicator
Turn-Signal Color	Amber / Yellow Appearance
Brake Light	Integrated Center Triangle — Identified in Current Product Imagery
Electrical Connection	Vehicle-Specific Plug-and-Play Harness
Wire Cutting / Splicing	Not Required by Current Installation Design
Drilling	Not Specified as Required
Vehicle Coding	Not Specified as Required
Published Housing Material	Not Reliably Published
Published Power	Not Published
Published Lumen Output	Not Published
Published Dimensions	Not Published
Published IP Rating	Not Published
DOT / E-Mark Certification	Not Published
Package	1 × Rear Pilot Light Assembly + Matching Plug-and-Play Harness Components Shown in Current Product Imagery

Quick Answers

Where does this light install? +

It installs in the lower center section of the Model Y rear bumper, below the main tail lamps.

What functions are built into the light? +

Current product imagery identifies LED running-light, sequential turn-signal and brake-light functions.

Are the turn signals sequential? +

Yes. The current manufacturer description specifically lists dynamic sequential indicators.

Does it replace the factory tail lights? +

No. It is a supplemental center rear pilot light. Your original left and right Tesla tail lamps remain installed.

Does it fit Model Y 2020–2022? +

Yes. Model Y 2020–2022 is the fitment currently listed directly by the Tesery source page.

Does TESKAY list it for Model Y 2023–2025.03? +

Yes. TESKAY currently lists Model Y 2020–2025.03, but the current Tesery source has narrowed its selector to 2020–2022. For a 2023–2025.03 vehicle, compatibility should therefore be confirmed before fulfillment.

Does it fit Model Y Juniper? +

No. The New Model Y Juniper uses a different rear-bumper design and is not included in the current compatible options.

Is installation plug-and-play? +

The electrical installation is described as plug-and-play using vehicle-specific harnesses.

Do I need to cut or splice factory wiring? +

No factory-wire cutting or permanent splicing is specified by the current installation design.

Is installation really tool-free? +

The electrical harness is plug-and-play, but physical access to the lower rear bumper normally requires ordinary trim or underbody-panel removal. This page therefore does not describe the entire installation as completely tool-free.

Is vehicle coding required? +

No vehicle coding is currently listed as part of the installation procedure.

Is it waterproof? +

The manufacturer markets the product as suitable for exterior vehicle use, but no verified IP rating is currently published, so this description does not claim IP65 or IP67.

Is this DOT or E-Mark certified? +

No verified DOT or E-Mark certification is currently published for this product, so no certification claim is made here.
